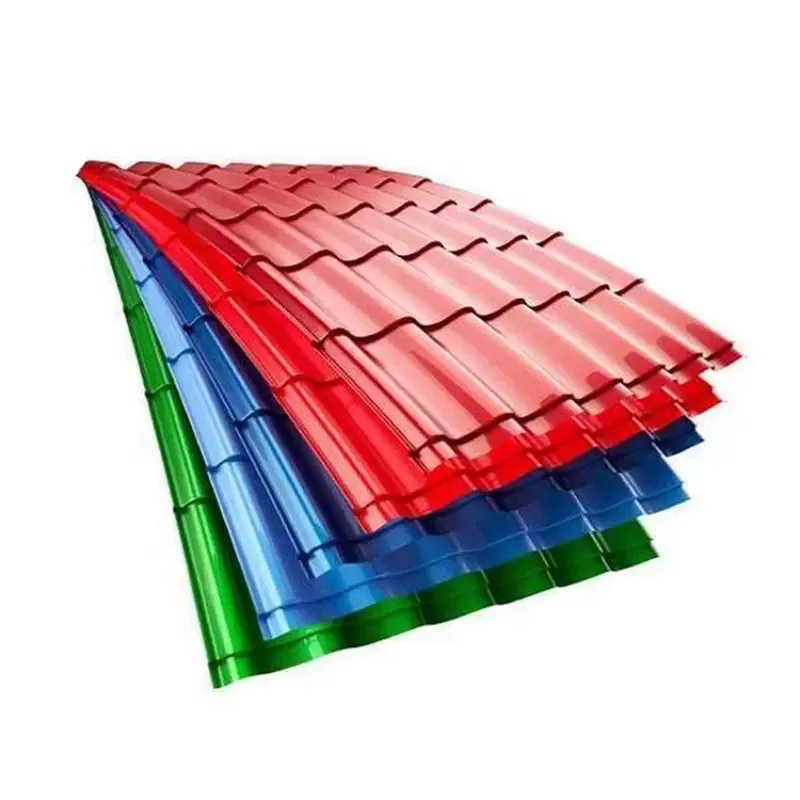

Full Hard Roofing Sheet - High Strength Structural Panel
Full hard roofing sheet with yield strength ≥550 MPa — manufactured from un-annealed cold-reduced steel for maximum structural rigidity. Higher strength enables thinner gauge material (0.12-0.50mm) to achieve equivalent structural performance, optimizing material cost. Available with GI (Z40-Z150) or GL (AZ50-AZ100) coating in corrugated or trapezoidal profiles.
| Product | Metal Roofing Sheet |
| Profile | Corrugated / Trapezoidal (customer choice) |
| Substrate | Full Hard GI (Z40-Z150) / Full Hard GL (AZ50-AZ100) |
| Thickness | 0.12 – 0.50 mm |
| Effective Width | 750 – 1050 mm (profile dependent) |
| Length | 1000 – 12000 mm (custom) |
| Standard | AS 1397, ASTM A653/A792, EN 10346, JIS G3302/3321 |
| Coating | Z40-Z275 / AZ50-AZ185 / PE/SMP/HDP/PVDF paint |
Full Hard Roofing Sheet
High Strength ≥550 MPa — Maximum Structural Rigidity — Cost-Effective Long Span
👉 替换图提示：请替换为全硬屋顶钢板横幅大图，建议展示钢卷仓库、生产线或成品库存场景。What Is Full Hard Roofing Sheet?
Full hard roofing sheet is manufactured from cold-reduced steel that has not been annealed after rolling. This preserves the work-hardened state, resulting in yield strength ≥550 MPa — significantly higher than standard drawing quality steel (≤280 MPa). The higher strength enables thinner gauge material to achieve equivalent structural performance.
Full hard roofing is particularly popular in markets where material cost optimization is important. By using high-strength thin-gauge material (0.12-0.50mm), builders can achieve acceptable roof performance at lower material weight and cost compared to standard-strength thicker gauges.
Available with GI (Z40-Z150) or GL (AZ50-AZ100) coating, full hard roofing sheets are roll-formed into corrugated or trapezoidal profiles for residential, agricultural and light commercial applications.
👉 替换图提示：放一张全硬屋顶钢板表面特写或产品实拍图。
Technical Specifications
Available in various thicknesses, widths and coating options. Common standards include ASTM, JIS, EN and GB/T. Different industries may choose different specifications depending on service life, corrosion requirements and fabrication method.
| Product | Metal Roofing Sheet |
|---|---|
| Profile | Corrugated / Trapezoidal (customer choice) |
| Substrate | Full Hard GI (Z40-Z150) / Full Hard GL (AZ50-AZ100) |
| Thickness | 0.12 – 0.50 mm |
| Effective Width | 750 – 1050 mm (profile dependent) |
| Length | 1000 – 12000 mm (custom) |
| Standard | AS 1397, ASTM A653/A792, EN 10346, JIS G3302/3321 |
| Coating | Z40-Z275 / AZ50-AZ185 / PE/SMP/HDP/PVDF paint |
Contact our technical team for specific grade and coating recommendations based on your application environment and processing requirements.
Applications
Thanks to its corrosion resistance, processing flexibility and cost-performance ratio, this product is widely used across construction, manufacturing and industrial sectors.
📷 替换为Residential Roofing应用场景图
🏠 Residential Roofing
Villas, townhouses, rural houses. Color-matched roofing sheets with 15-25+ year life. Lightweight, easy installation.
📷 替换为Commercial Building应用场景图
🏗️ Commercial Building
Warehouses, factories, shopping centers, airports. Large-span roofing with excellent drainage and wind resistance.
📷 替换为Industrial Facility应用场景图
🏭 Industrial Facility
Steel structure workshops, PEB buildings, cold storage, logistics parks. Cost-effective metal cladding solutions.
📷 替换为Agricultural应用场景图
🌾 Agricultural
Poultry houses, barns, grain silos, greenhouses. Corrosion-resistant roofing for high-humidity environments.
Corrugated vs Trapezoidal Roofing
The two most common metal roofing profiles. Choice depends on span requirements, aesthetics and application.
Corrugated (Wave) Profile
The classic, proven roofing profile with excellent drainage and universal acceptance.
Trapezoidal (IBR/T) Profile
Modern industrial standard with superior spanning capability and clean architectural lines.
| Comparison Item | Corrugated (Wave) Profile | Trapezoidal (IBR/T) Profile |
|---|---|---|
| Profile | Sinusoidal wave pattern | IBR / trapezoidal ribs |
| Visual | Traditional, classic look | Modern, clean lines |
| Spanning | Shorter spans | Longer spanning capability |
| Strength | Standard structural performance | Higher section modulus per unit width |
| Drainage | Excellent water flow | Good drainage with flat pans |
| Installation | Simple, well-known technique | May require specific fastening |
| Cost | Generally lower | Slightly higher for equivalent thickness |
| Best For | Residential, agricultural, light commercial | Industrial, commercial, long-span |
👉 替换为全硬屋顶钢板优势展示图
Main Advantages
This product combines durability, processing flexibility and cost-effectiveness for a wide range of applications.
- Multiple substrate options — GI, GL, PPGI, PPGL — matched to performance requirement and budget
- Custom profiles and lengths — Corrugated, trapezoidal, tile, standing seam and custom profiles up to 12m length
- Factory roll-formed — Precision roll-formed from certified coil stock — consistent profile dimensions and quality
- Color and finish options — Metallic (GI/GL), RAL colors (PPGI/PPGL), wrinkle/textured, wood-grain print
- Wind and weather tested — Profiles designed and tested for wind uplift, rain penetration and thermal movement resistance
- Export packaging — Bundle-packed with plastic interleaving, steel strapping and container-optimized loading
Why Choose SunSea Steel?
Choosing the right supplier means more than buying steel. It also means stable quality, export experience, efficient communication and reliable delivery support.
Stable Product Quality
Uniform coating mass, reliable base steel quality and stable surface condition help ensure consistent performance in export orders.
Custom Specification Support
Thickness, width, coating mass, steel grade, surface treatment and packing can be customized according to project requirements.
Professional Export Service
Support for packing, loading, shipping documents and delivery coordination helps customers manage international orders more efficiently.
Fast Response and Quotation
Buyers can quickly get specification confirmation, technical support and quotation feedback for distribution, project procurement and manufacturing use.
Factory Strength and Production Capability
Our production system focuses on coating uniformity, thickness control, clean surface quality and export-standard packing. From raw material selection to final inspection and shipment preparation, every stage is managed to improve product consistency and reduce customer risk.
For buyers, factory capability means more than output volume. It also means communication efficiency, documentation support, shipment coordination and the ability to provide stable product supply over time.
- Stable production planning for export orders
- Support for customized sizes and coating requirements
- Professional handling of packing and shipment preparation
- Inspection and tolerance control before delivery
👉 替换为生产线、检验区或工厂实拍图
Quality Control and Inspection
Product quality is one of the key concerns for overseas buyers. Quality should be controlled not only by final visual inspection, but also by process stability, specification verification and export packing inspection.
Surface and Dimension Inspection
Surface condition, width, edge quality and dimensional tolerance are checked before delivery.
Pre-Shipment Quality Control
Packing condition, identification, quantity confirmation and shipment readiness are reviewed before export.
Thickness and Width Verification
Thickness tolerance, width and coil dimensions are checked to ensure the material is suitable for roll forming, profiling and project processing needs.
Coating and Surface Checking
Coating weight requirements and surface appearance are reviewed before packing and shipment.
Packing Inspection
Export packing is examined to ensure moisture-proof protection, steel straps and edge protectors are correctly applied.
Shipment Preparation
Quantity, identification, loading readiness and related documentation are confirmed before export delivery.
👉 替换为钢卷海运包装实拍图
Standard Export Seaworthy Packaging
For steel export, correct packaging is extremely important. Even high-quality product can suffer surface damage, moisture exposure or edge deformation if packing is not suitable for sea shipment.
- Inner Moisture Protection: Waterproof kraft paper and plastic film help reduce moisture contact.
- Outer Steel Cover: Additional outer steel sheet gives stronger protection during handling.
- Edge Protection: Edge protectors reduce impact damage during lifting and stacking.
- Steel Strapping: Radial and circumferential straps help keep the coil stable.
- Pallet Support: Wooden or steel pallets can be used according to shipping requirements.
Shipping, Loading and Delivery Solutions
Shipping method depends on order quantity, coil size and destination requirements. Container shipment and break bulk vessel are the most common methods for steel coil export.
Container Shipment
Suitable for regular export orders. Coils packed on pallets and loaded into containers for safe sea transport. FOB/CIF/CFR available.
Break Bulk Vessel Shipment
For large volume orders or oversized coils. Professional lifting, lashing and port handling for bulk steel procurement.
Small to medium orders: container shipment is preferred. Large-scale or project orders: break bulk vessel may be more efficient.
Frequently Asked Questions
What is the standard roofing sheet length?
Standard: 1000-6000mm. Custom up to 12000mm. Most projects use 2000-4000mm to minimize end laps and leak risk.
What thickness for roofing?
Residential: 0.35-0.50mm. Commercial: 0.40-0.60mm. Industrial: 0.50-0.80mm. Thicker = stronger wind uplift resistance.
What substrate is best for roofing?
GL (Galvalume AZ150) is the industry standard — 2-4× longer than GI. PPGL for color + max corrosion resistance. Full-hard GI for economy.
Corrugated vs Trapezoidal — which is better?
Corrugated (wave) is traditional, cost-effective, good drainage. Trapezoidal (IBR/T-profile) has better spanning capability, stronger, more modern.
What is the MOQ for roofing sheets?
5,000 linear meters or 25 MT per profile/color. Mixed containers with 25 MT total minimum.
Can roofing sheets be customized?
Yes. Profile, length, color, substrate, thickness, and packing can all be customized to project requirements.
Looking for Quality Metal Roofing Sheets?
Contact us for roofing sheet pricing, custom profiles, substrate options and export solutions. Factory direct worldwide.
