Self-Drilling Anchor Drill Bits Couplers Nuts and Plates
Matched self-drilling anchor accessories including sacrificial drill bits, couplers, nuts, plates and centralizers for hollow anchor bar systems.
| Product Scope | Sacrificial drill bits, couplers, nuts, bearing plates, centralizers |
| Compatible Bars | R25, R32, R38, R51, T76 and project-specific hollow anchor bars |
| Drill Bit Types | Clay bit, cross bit, carbide bit, button bit depending on geology |
| Coupler Function | Connects bar sections and transfers drilling torque and anchor load |
| Plate Function | Distributes load to shotcrete, slope face, retaining wall or rock surface |
| Nut Type | Matched thread nut or project-specified bearing nut |
| Centralizer Function | Keeps bar centered for better grout cover |
| Supply Mode | Complete accessory kits or separate components |
Matched self-drilling anchor accessories including sacrificial drill bits, couplers, nuts, bearing plates and centralizers for hollow anchor bar systems.
Product Overview
A self-drilling anchor system performs correctly only when the bar and accessories match. Drill bit geometry, coupler strength, nut thread, plate size and centralizer fit all affect installation quality and final support performance.
This accessory product is designed for buyers who need complete kits rather than separate parts from different sources. Matching accessories reduce site delays, thread mismatch and under-rated connection risk.
Accessory selection should follow anchor size, ground type, borehole diameter, load requirement and corrosion protection requirements.
Product Image Gallery

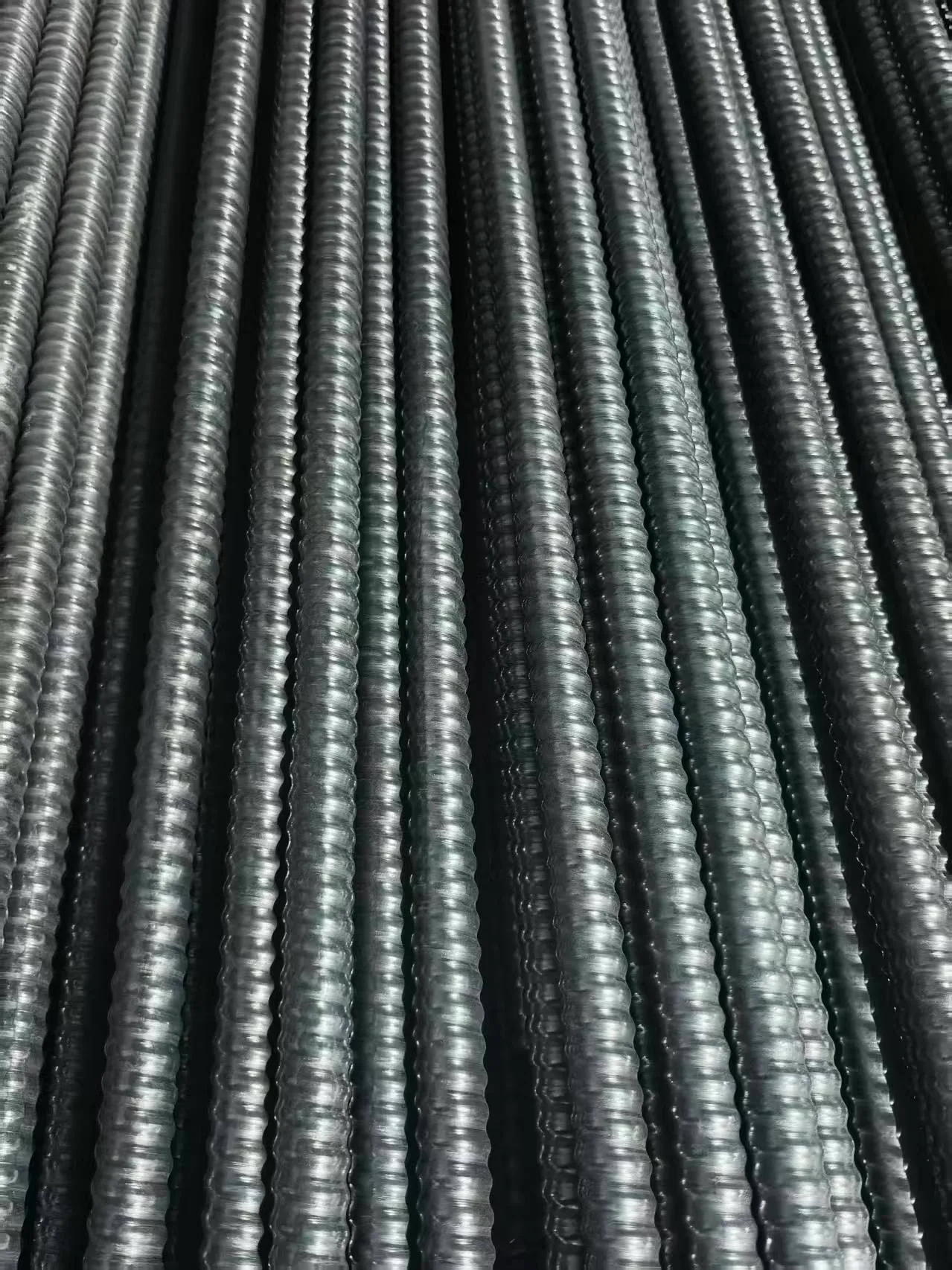

Real anchor product images from the current SunSea Steel media library, showing hollow bars, threaded profiles, grouting anchor rods and accessory details.
Technical Specifications
| Product Scope | Sacrificial drill bits, couplers, nuts, bearing plates, centralizers |
|---|---|
| Compatible Bars | R25, R32, R38, R51, T76 and project-specific hollow anchor bars |
| Drill Bit Types | Clay bit, cross bit, carbide bit, button bit depending on geology |
| Coupler Function | Connects bar sections and transfers drilling torque and anchor load |
| Plate Function | Distributes load to shotcrete, slope face, retaining wall or rock surface |
| Nut Type | Matched thread nut or project-specified bearing nut |
| Centralizer Function | Keeps bar centered for better grout cover |
| Supply Mode | Complete accessory kits or separate components |
Applications and Ground Conditions
Loose soil drilling
Clay or stepped bits help advance through soil, fill and weak formations.
Rock drilling
Carbide cross bits or button bits are selected for harder or fractured rock.
Long anchors
Couplers connect bar sections for staged installation.
Permanent works
Centralizers and correct plates improve grout cover and load transfer.
Performance Advantages
Compatibility
Accessories are matched to bar thread and project requirements.
Reduced site risk
Complete kits avoid missing plates, wrong nuts or under-rated couplers.
Geology-based bit choice
Bit type can be selected for clay, sand, gravel, fill or fractured rock.
Procurement clarity
Bills of material can list exact quantities for each anchor position.
Selection Guide
Choose accessories based on anchor size, geology, drilling method and surface support condition.
| Soft soil | Use bit geometry that clears soil and allows grout return. |
|---|---|
| Gravel or fill | Select stronger bits with suitable cutting structure. |
| Fractured rock | Use carbide or button bits according to hardness. |
| Bearing plates | Size plates according to ground strength, facing and design load. |
Quality Control and Installation Checks
Material and load verification
Confirm bar designation, wall thickness, yield load, ultimate load and weight per meter before production. Mill test certificates can be supplied for export orders.
Thread and coupler fit
Thread profile, coupler engagement, nut fit and plate compatibility should be checked as a complete system rather than separate parts.
Grouting control
Record grout mix, pressure, volume, return flow and curing time. Proper grout filling is essential for bond strength and corrosion protection.
Site acceptance
Installed length, drilling depth, bit diameter and accessory quantity should be recorded for each anchor position.
Accessories, Packaging and Export Supply
Matched accessory kits
Bars can be supplied with sacrificial drill bits, couplers, nuts, plates and centralizers according to project bill of materials.
Export packaging
Bundles are prepared for long-distance sea freight, container loading and jobsite handling.
Custom lengths
Standard and project-specific lengths are available. Couplers support staged installation in confined working areas.
Documentation
Packing list, commercial invoice, mill test certificate and inspection records can be prepared according to order terms.
Why Choose SunSea Steel
- Real anchor product images from the current media library, not generic placeholders.
- Specification-driven quotation covering bar, bit, coupler, nut, plate and centralizer.
- Support for R25, R32, R38, R51, T76 and project-specific self-drilling anchor systems.
- Export-oriented packaging and documentation for international buyers.
- Technical communication focused on ground condition, load requirement and installation method.
- Responsive quotation support through email and WhatsApp template variables.
Frequently Asked Questions
What is self-drilling anchor accessories used for?
These accessories are used with hollow anchor bars for drilling, coupling, bearing, centering and final load transfer.
What load range is typical for self-drilling anchor accessories?
Accessory load capacity should match or exceed project requirements and should not become the weak point in the anchor system.
Can the hollow anchor bar be grouted through the center?
Yes. Cement grout is injected through the hollow core and exits near the sacrificial drill bit, filling the annular space around the bar.
Which accessories should be ordered with the anchor bar?
A complete order usually includes drill bits, couplers, nuts, bearing plates and centralizers matched to the bar thread and ground condition.
Can self-drilling anchors be used in collapsing boreholes?
Yes. The bar drills and remains in place, so installation does not depend on maintaining a stable open borehole before inserting reinforcement.
How do I choose between R32, R38, R51 and T76?
Selection depends on design load, required length, ground condition, borehole diameter, grout volume, equipment capacity and corrosion protection requirement.
Can the surface be galvanized or coated?
Hot-dip galvanizing, epoxy coating or project-specified corrosion protection can be discussed for permanent works.
What information is needed for quotation?
Send anchor size, length, quantity, design load, drill bit type, plate size, coupler quantity, ground condition and destination port.
Request Technical Support and Quotation
Send your anchor size, length, quantity, design load, ground condition, drill bit type, plate size, coating requirement and destination port. We will match the hollow anchor bar, drill bit, coupler, nut, plate and centralizer as a complete self-drilling anchor system.
