Wrinkle Textured PPGI Coil - Embossed Matte Color GI
Wrinkle/textured finish PPGI coil with embossed matte surface created by controlled paint formulation and curing. 25-35μm paint thickness (heavier than standard 15-20μm PE) provides enhanced mechanical and weather protection. Hides minor scratches and fingerprints. Popular for garage doors, roller shutters, interior wall panels, decorative facades, elevator interiors and premium consumer product housings.
| Product | Prepainted Galvanized Steel Coil / PPGI Coil |
| Paint System | Wrinkle PE 25-35μm / Embossed SMP |
| Substrate | Hot-Dip Galvanized Steel (GI, Z40-Z275) |
| Thickness | 0.12 – 1.2 mm |
| Width | 600 – 1250 mm |
| Top Paint | 15-25μm (PE/SMP/HDP/PVDF) |
| Back Paint | 5-10μm Epoxy Primer |

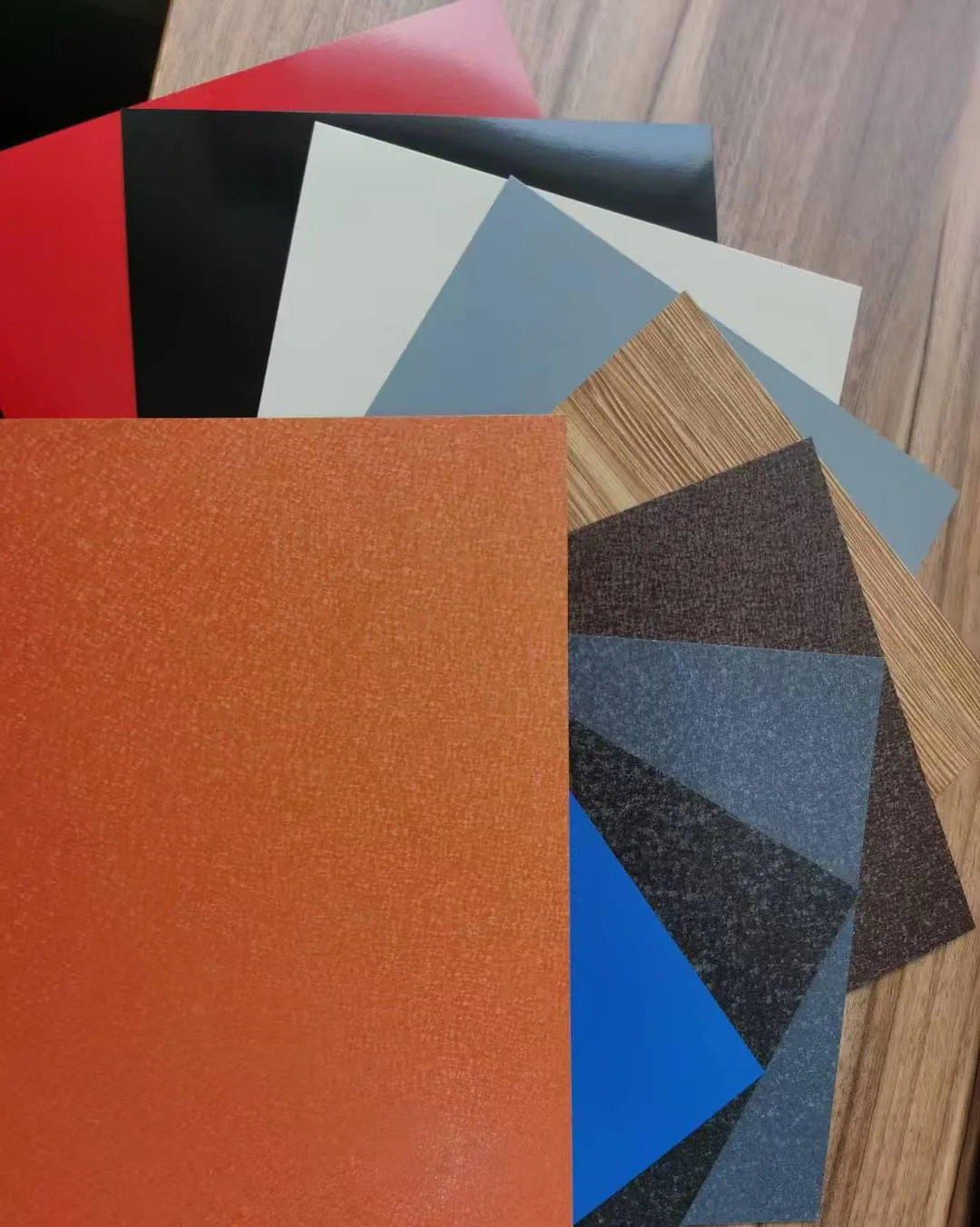

| Colors | RAL, Pantone, or custom color matching |
| Standard | ASTM A755, EN 10169, JIS G3312, GB/T 12754 |
| Gloss | 20-80% (matte to high gloss) |
Wrinkle Textured PPGI Coil
Embossed Matte Finish — Scratch-Resistant — Premium Aesthetic for Decorative Applications
👉 替换图提示：请替换为网纹/皱纹彩涂镀锌钢卷横幅大图，建议展示钢卷仓库、生产线或成品库存场景。What Is Wrinkle Textured PPGI Coil?

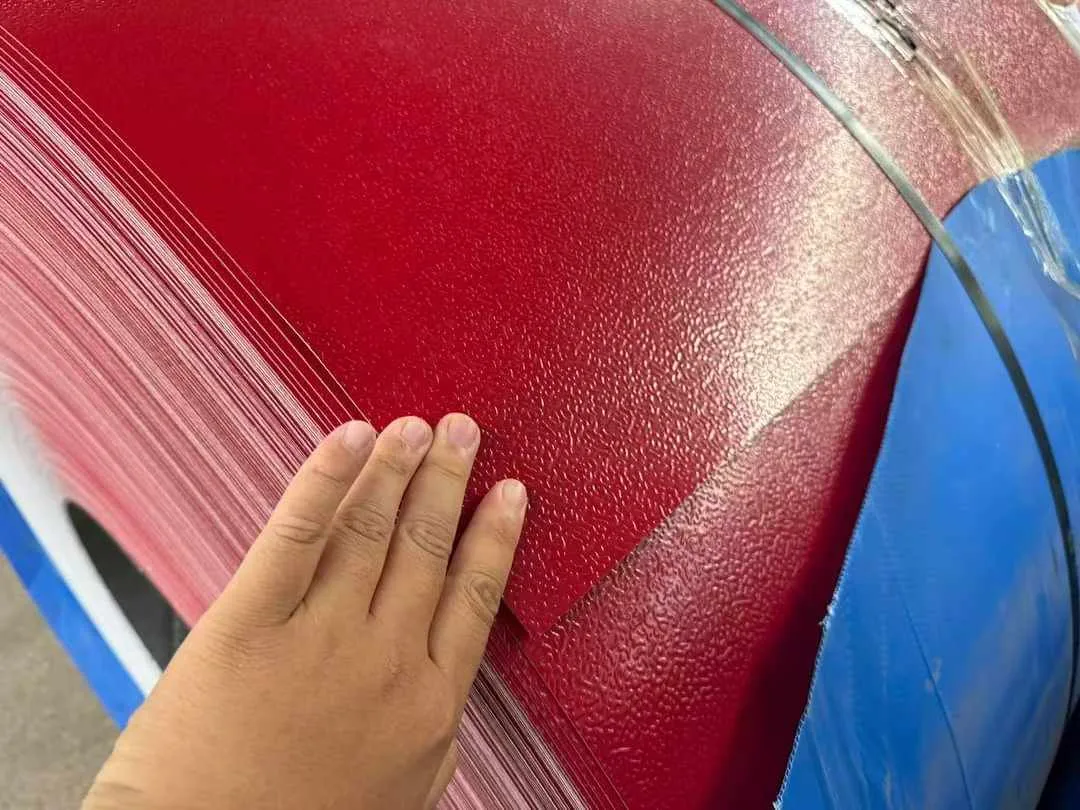

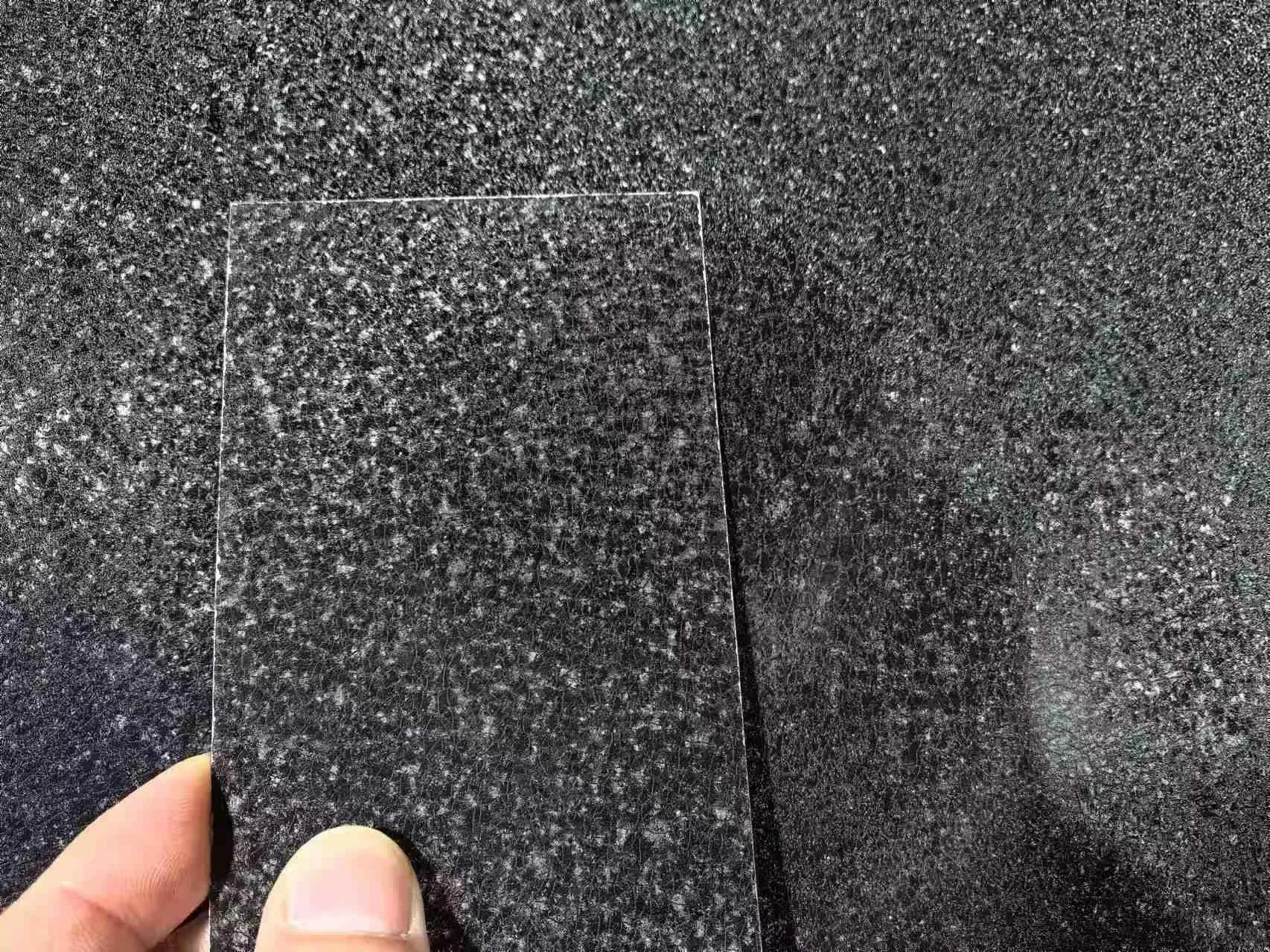

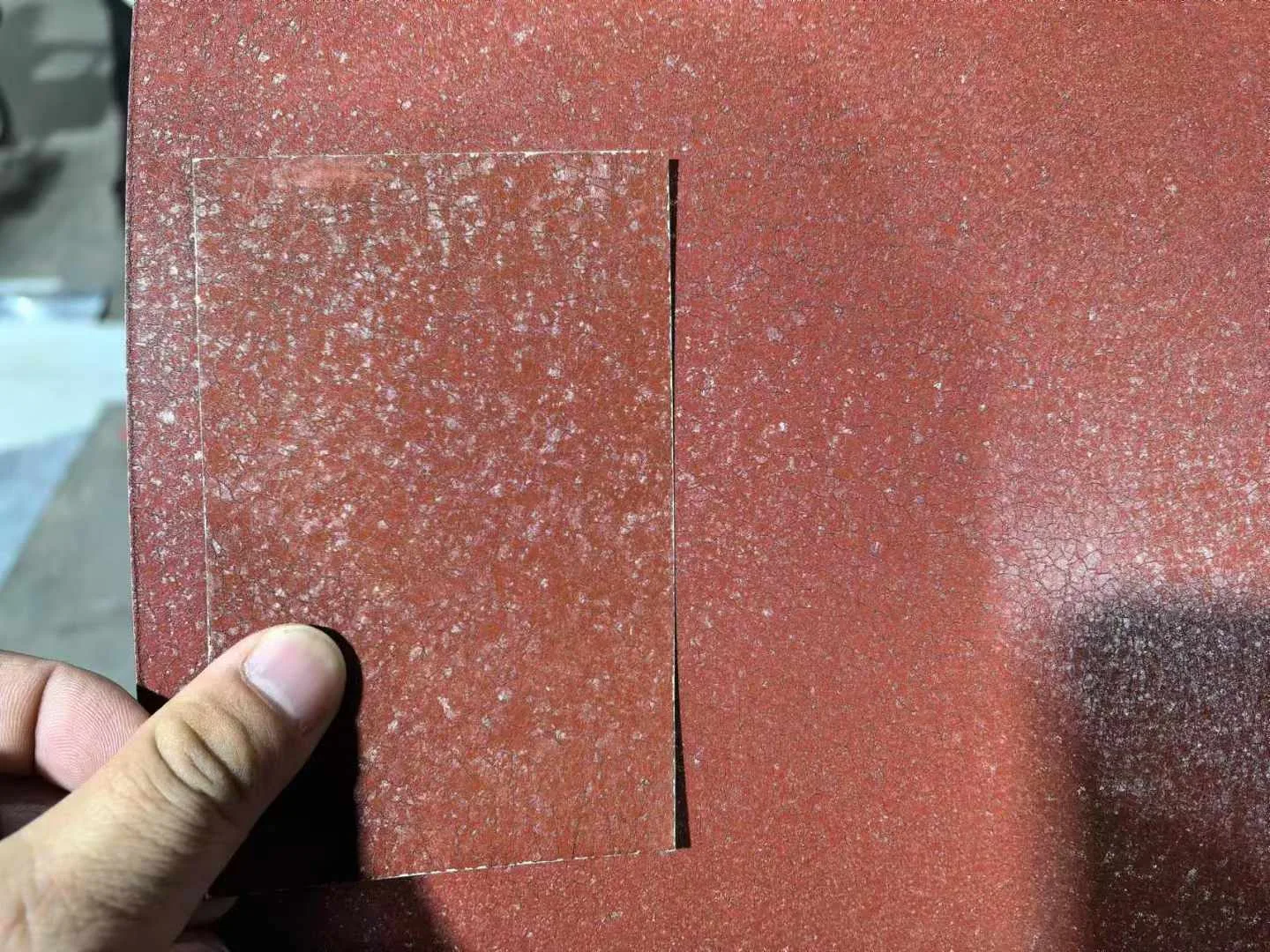

Wrinkle textured PPGI coil features a specially formulated paint that creates an embossed, matte, wrinkle-finish surface during the curing process. Unlike standard smooth PPGI, the textured surface hides minor scratches, fingerprints and handling marks, making it ideal for applications where the product will be regularly touched or exposed to incidental contact.
The wrinkle finish is produced by controlling paint formulation, coating thickness and curing temperature to create a controlled surface texture. Typical wrinkle paint thickness is 25-35μm — heavier than standard smooth PE (15-20μm) — providing additional mechanical and weather protection.
Popular applications include garage doors, roller shutters, interior wall panels, decorative building facades, elevator interiors and premium consumer product housings where a high-end matte aesthetic is desired.
Technical Specifications
Available in various thicknesses, widths and coating options. Common standards include ASTM, JIS, EN and GB/T. Different industries may choose different specifications depending on service life, corrosion requirements and fabrication method.
| Product | Prepainted Galvanized Steel Coil / PPGI Coil |
|---|---|
| Paint System | Wrinkle PE 25-35μm / Embossed SMP |
| Substrate | Hot-Dip Galvanized Steel (GI, Z40-Z275) |
| Thickness | 0.12 – 1.2 mm |
| Width | 600 – 1250 mm |
| Top Paint | 15-25μm (PE/SMP/HDP/PVDF) |
| Back Paint | 5-10μm Epoxy Primer |
| Colors | RAL, Pantone, or custom color matching |
| Standard | ASTM A755, EN 10169, JIS G3312, GB/T 12754 |
| Gloss | 20-80% (matte to high gloss) |
Contact our technical team for specific grade and coating recommendations based on your application environment and processing requirements.
Applications
Thanks to its corrosion resistance, processing flexibility and cost-performance ratio, this product is widely used across construction, manufacturing and industrial sectors.

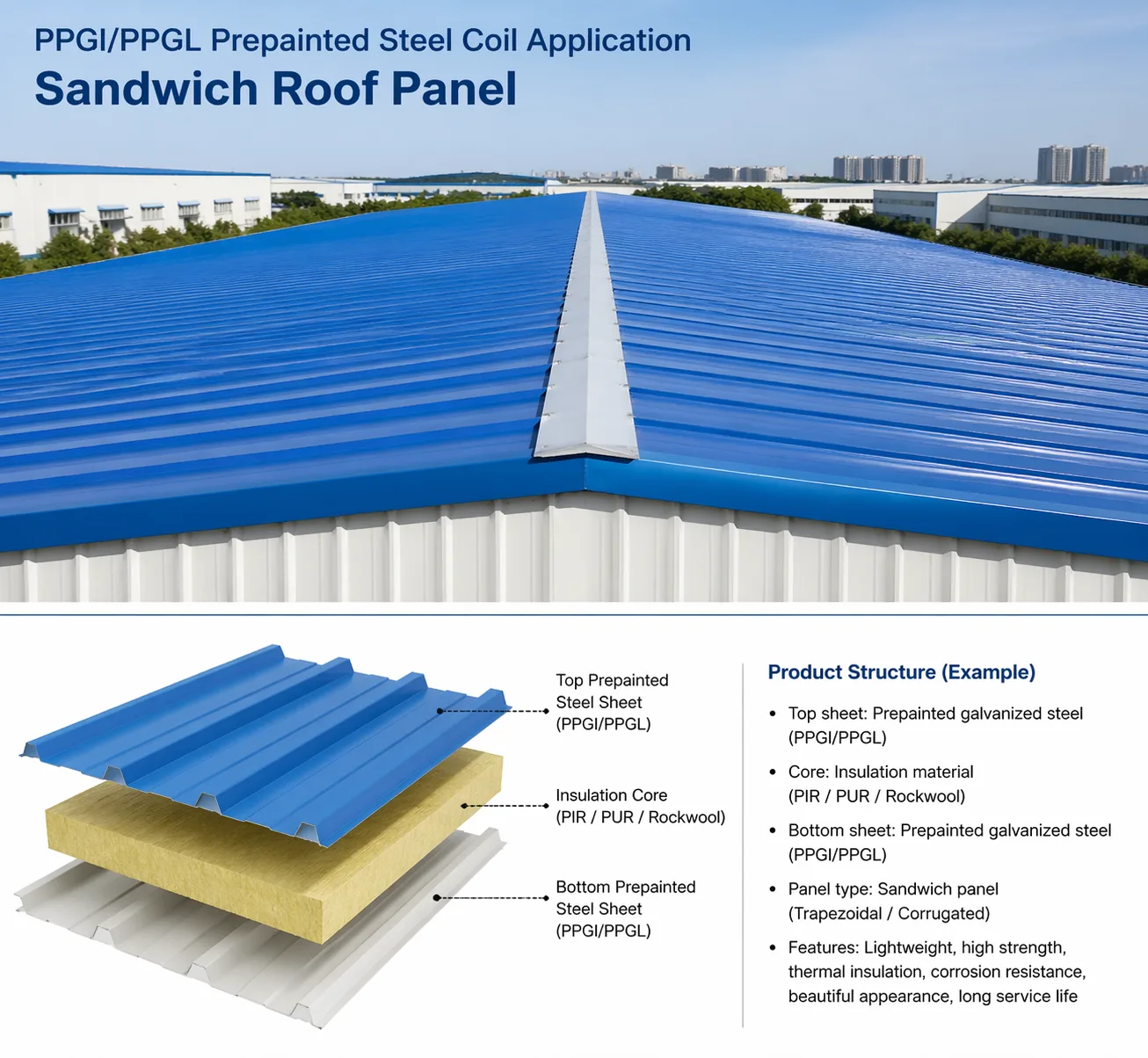

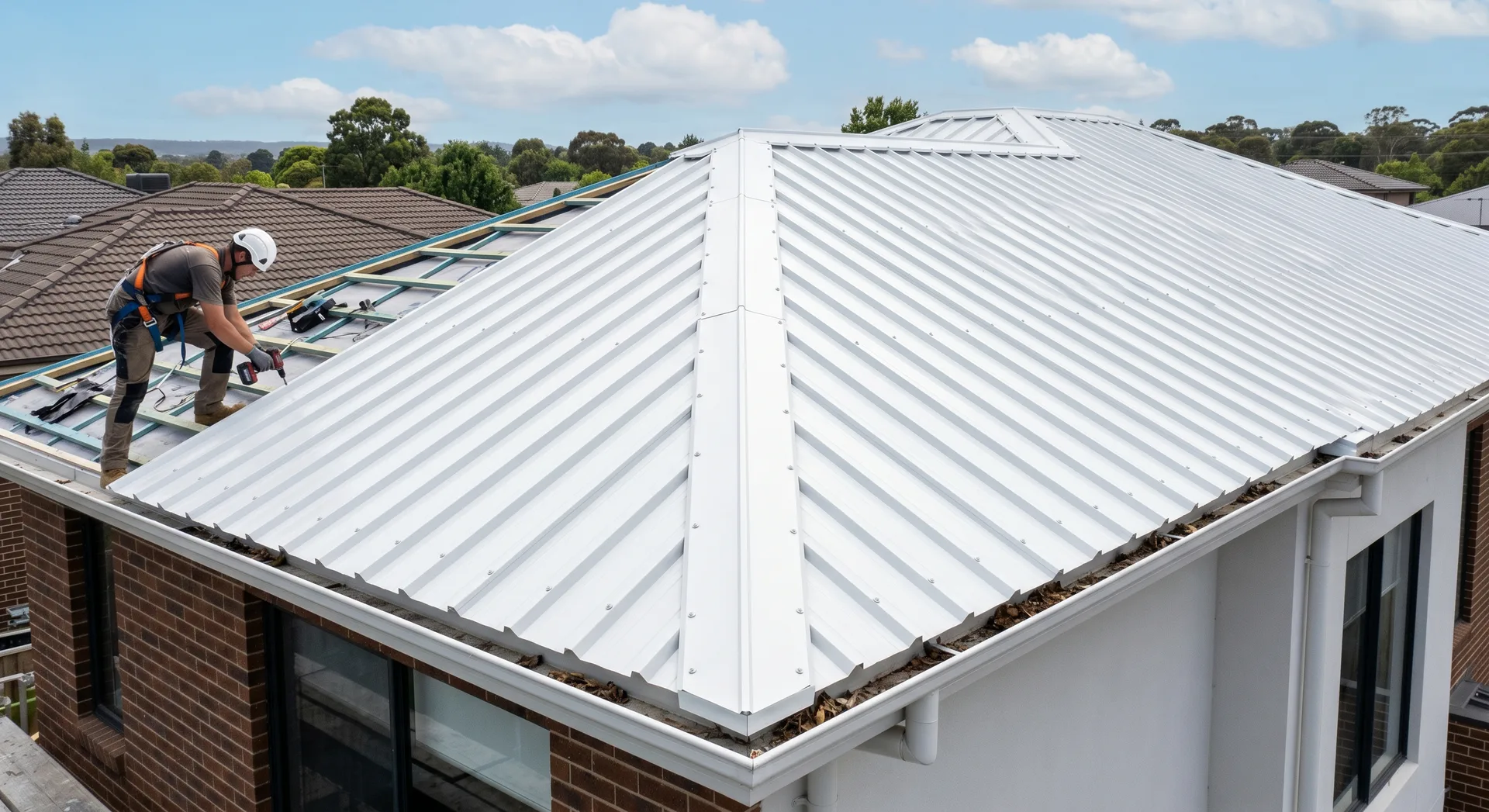

🏗️ Building Envelope
Exterior wall panels, interior partitions, ceiling tiles, decorative facades, curtain wall infills, and architectural cladding systems.
🏠 Appliance & Furniture
Refrigerator panels, washing machine shells, air conditioner housings, office furniture panels, whiteboard surfaces, and display cabinets.
🏭 Industrial Cladding
Factory wall cladding, clean room panels, cold storage walls, PEB roof and wall sheets, and controlled-environment enclosures.

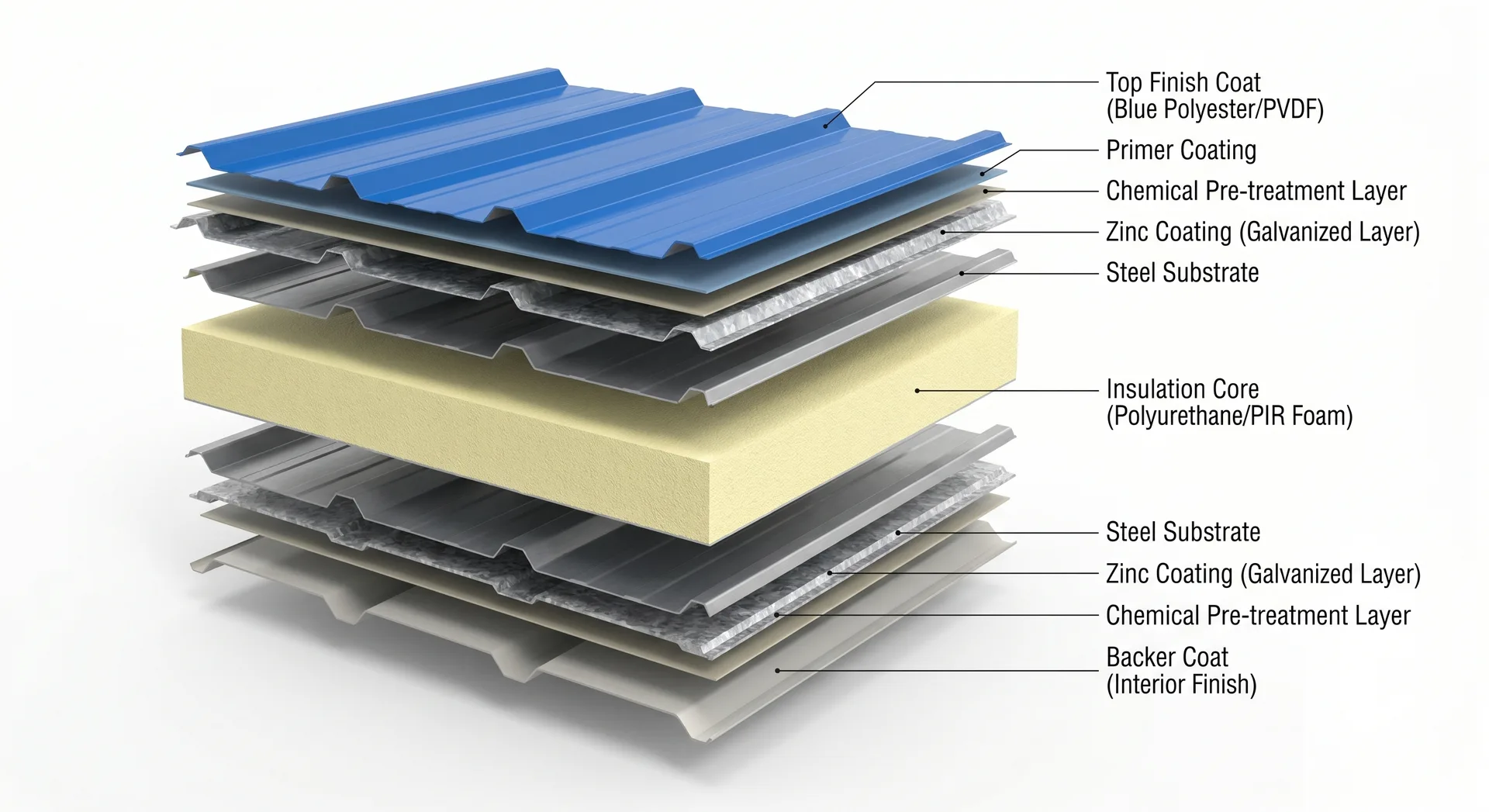

📦 Roll Forming
Corrugated roofing, trapezoidal sheets, C/Z purlins, door panels, shutter slats, garage door sections, and sandwich panel facings.
PPGI vs PPGL
Both PPGI and PPGL are color coated steel products. The key difference is the substrate: PPGI uses galvanized (zinc) substrate while PPGL uses Galvalume (Al-Zn) substrate.
PPGI (GI Substrate)
Cost-effective color coated solution with broad market availability and wide application range.
PPGL (GL Substrate)
Premium color coated solution with 2-4× longer substrate corrosion life for demanding exterior use.
| Comparison Item | PPGI (GI Substrate) | PPGL (GL Substrate) |
|---|---|---|
| Substrate | GI (zinc coated) | GL (55% Al-Zn coated) |
| Corrosion Life | Good; standard outdoor performance | 2-4× longer than PPGI in same conditions |
| Cost | More economical | 5-10% higher |
| Best For | Interior, light exterior, appliances | Premium roofing, marine, harsh environments |
| Paint Adhesion | Excellent on zinc surface | Excellent on Al-Zn surface |
| Heat Resistance | Standard (GI substrate 230°C) | Higher (GL substrate 315°C) |
| Market Share | Higher volume, broader availability | Growing premium segment |
Main Advantages
This product combines durability, processing flexibility and cost-effectiveness for a wide range of applications.
- Wide RAL color range — Thousands of RAL, Pantone and custom colors available with ΔE ≤ 1.5 color matching accuracy
- Multiple paint systems — PE economy to PVDF ultra-premium — matched to application requirements and budget
- Excellent paint adhesion — Continuous CCL coating ensures uniform paint thickness and adhesion across entire coil length
- Cost-effective color solution — Lower cost than PPGL while providing reliable color and corrosion protection for most applications
- Versatile processing — Can be corrugated, roll-formed, bent, stamped and profiled without paint cracking or delamination
- 10-25 year paint warranty — PE 10-15 years, SMP 15-20 years, HDP 20-25 years, PVDF 25+ years depending on environment
Why Choose SunSea Steel?
Choosing the right supplier means more than buying steel. It also means stable quality, export experience, efficient communication and reliable delivery support.
Stable Product Quality
Uniform coating mass, reliable base steel quality and stable surface condition help ensure consistent performance in export orders.
Custom Specification Support
Thickness, width, coating mass, steel grade, surface treatment and packing can be customized according to project requirements.
Professional Export Service
Support for packing, loading, shipping documents and delivery coordination helps customers manage international orders more efficiently.
Fast Response and Quotation
Buyers can quickly get specification confirmation, technical support and quotation feedback for distribution, project procurement and manufacturing use.

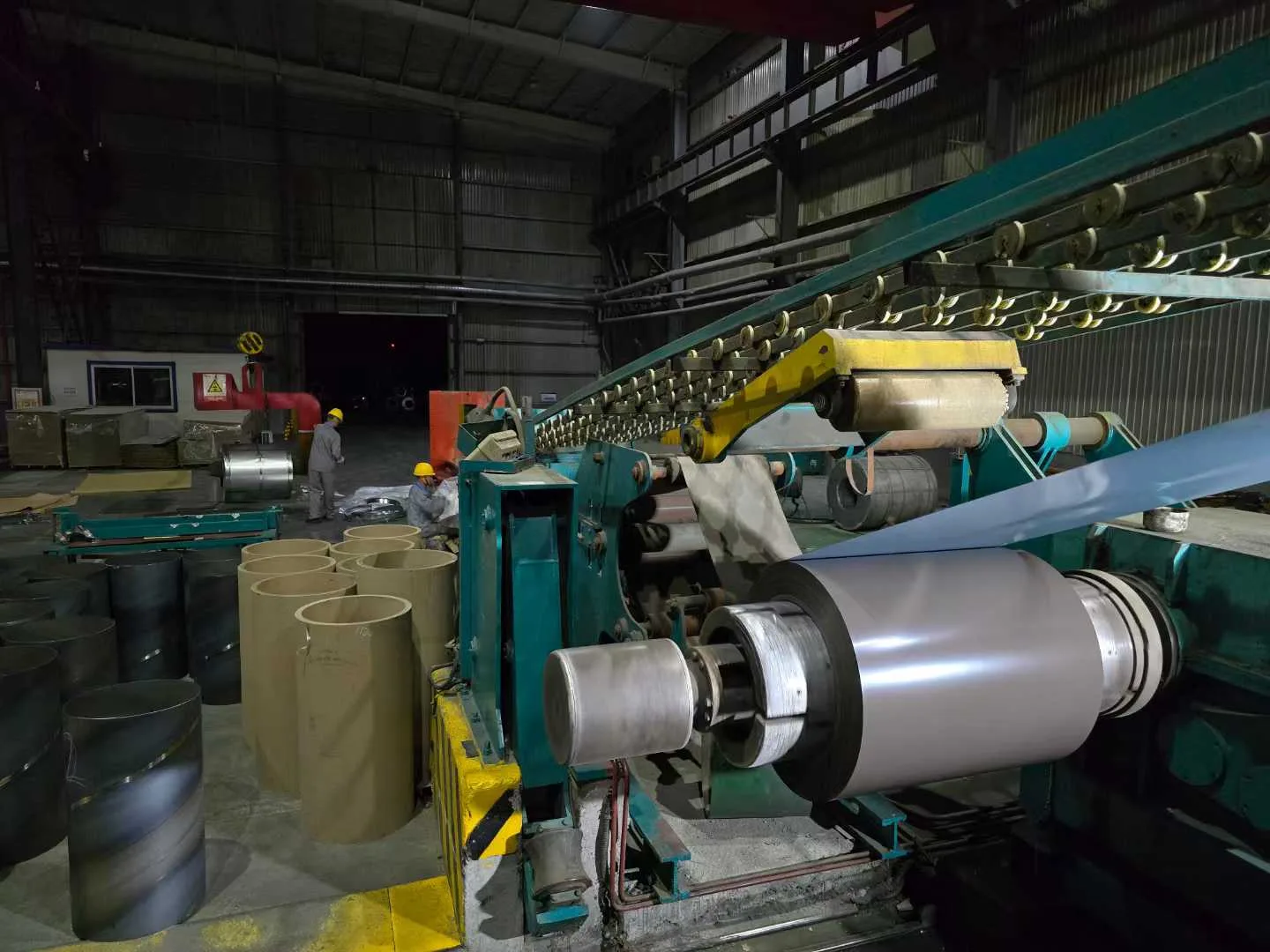

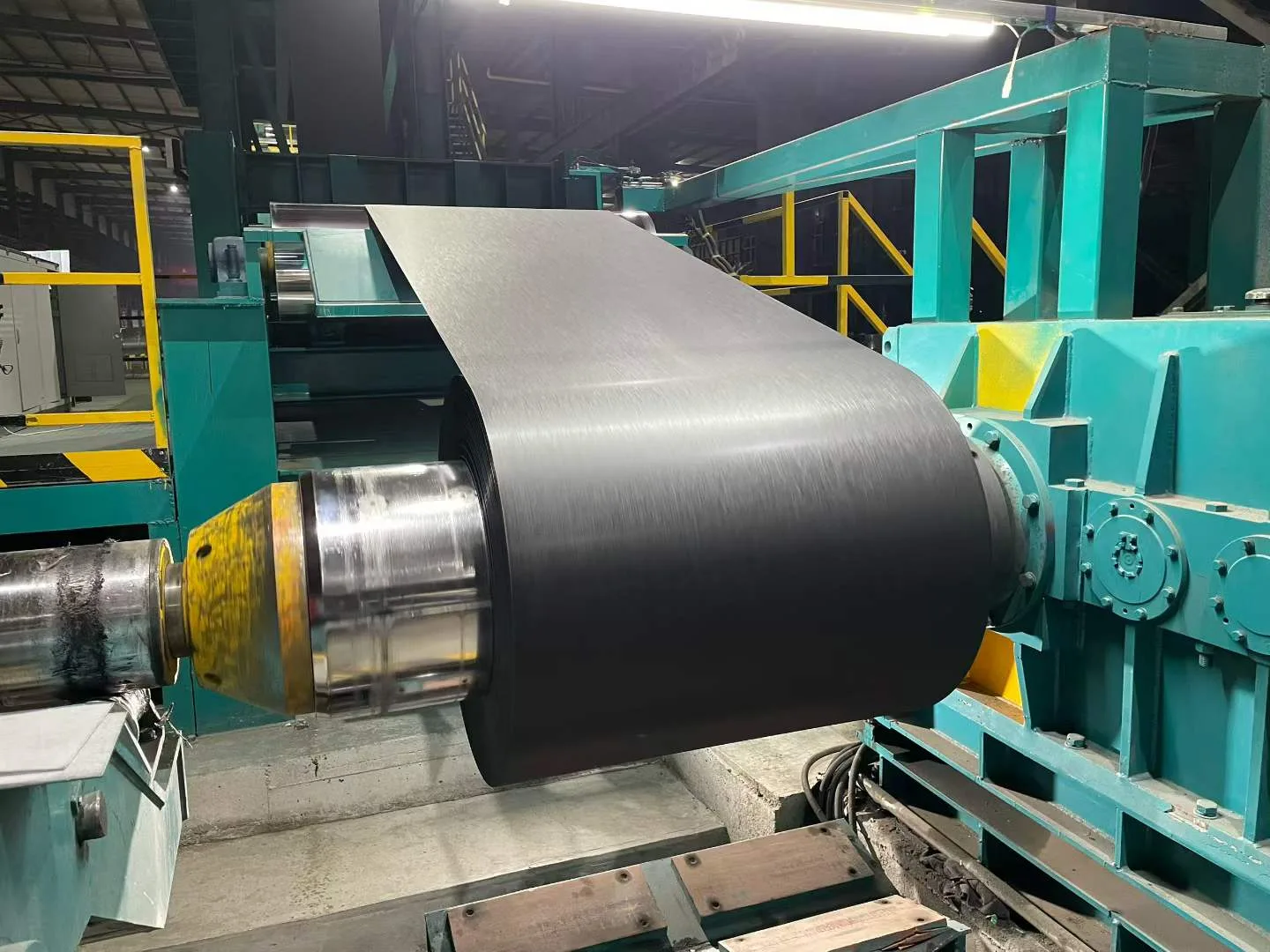

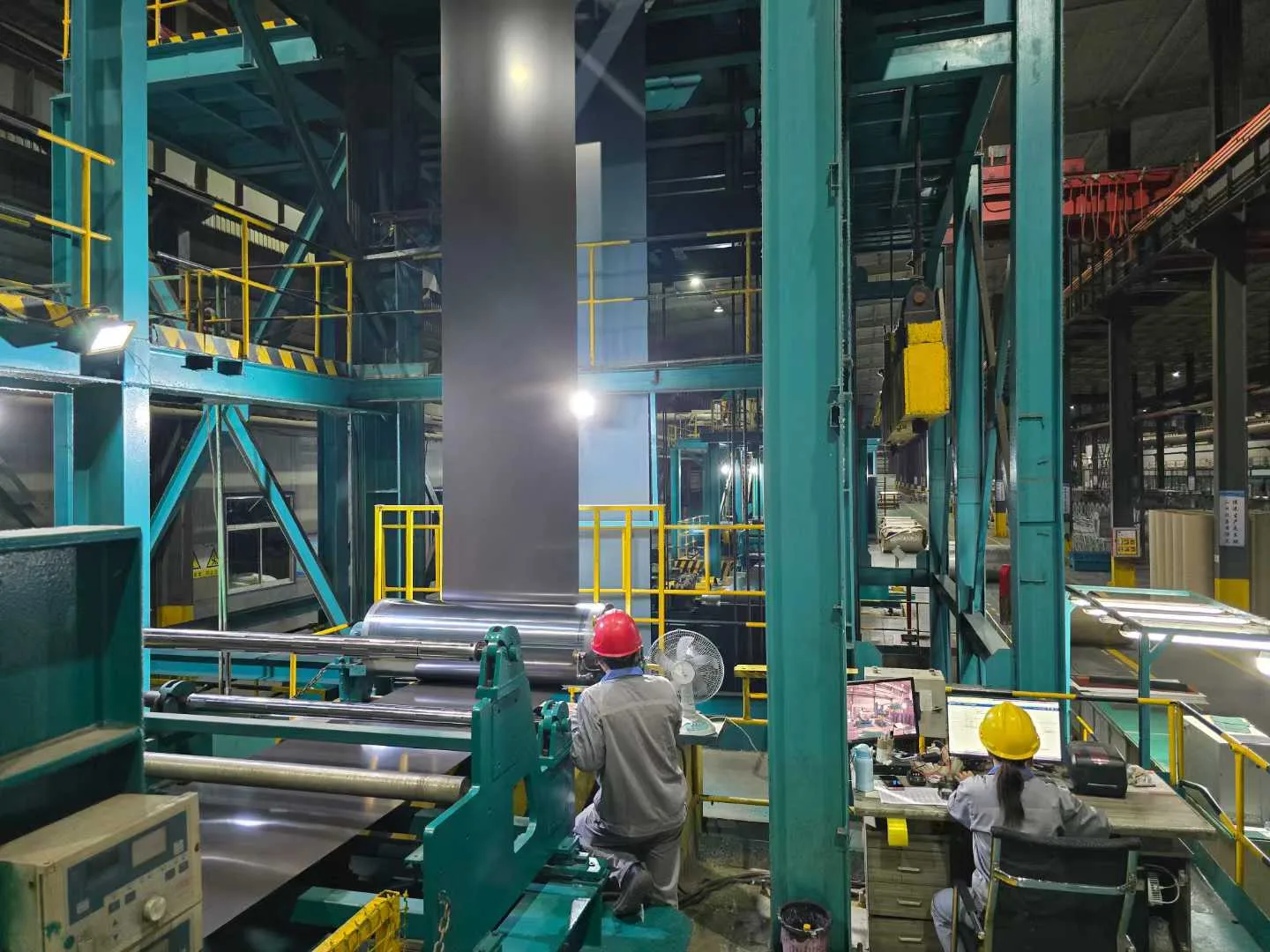

Factory Strength and Production Capability
Our production system focuses on coating uniformity, thickness control, clean surface quality and export-standard packing. From raw material selection to final inspection and shipment preparation, every stage is managed to improve product consistency and reduce customer risk.
For buyers, factory capability means more than output volume. It also means communication efficiency, documentation support, shipment coordination and the ability to provide stable product supply over time.
- Stable production planning for export orders
- Support for customized sizes and coating requirements
- Professional handling of packing and shipment preparation
- Inspection and tolerance control before delivery
Quality Control and Inspection
Product quality is one of the key concerns for overseas buyers. Quality should be controlled not only by final visual inspection, but also by process stability, specification verification and export packing inspection.
Surface and Dimension Inspection
Surface condition, width, edge quality and dimensional tolerance are checked before delivery.
Pre-Shipment Quality Control
Packing condition, identification, quantity confirmation and shipment readiness are reviewed before export.
Thickness and Width Verification
Thickness tolerance, width and coil dimensions are checked to ensure the material is suitable for roll forming, profiling and project processing needs.
Coating and Surface Checking
Coating weight requirements and surface appearance are reviewed before packing and shipment.
Packing Inspection
Export packing is examined to ensure moisture-proof protection, steel straps and edge protectors are correctly applied.
Shipment Preparation
Quantity, identification, loading readiness and related documentation are confirmed before export delivery.
Standard Export Seaworthy Packaging
For steel export, correct packaging is extremely important. Even high-quality product can suffer surface damage, moisture exposure or edge deformation if packing is not suitable for sea shipment.
- Inner Moisture Protection: Waterproof kraft paper and plastic film help reduce moisture contact.
- Outer Steel Cover: Additional outer steel sheet gives stronger protection during handling.
- Edge Protection: Edge protectors reduce impact damage during lifting and stacking.
- Steel Strapping: Radial and circumferential straps help keep the coil stable.
- Pallet Support: Wooden or steel pallets can be used according to shipping requirements.
Shipping, Loading and Delivery Solutions
Shipping method depends on order quantity, coil size and destination requirements. Container shipment and break bulk vessel are the most common methods for steel coil export.

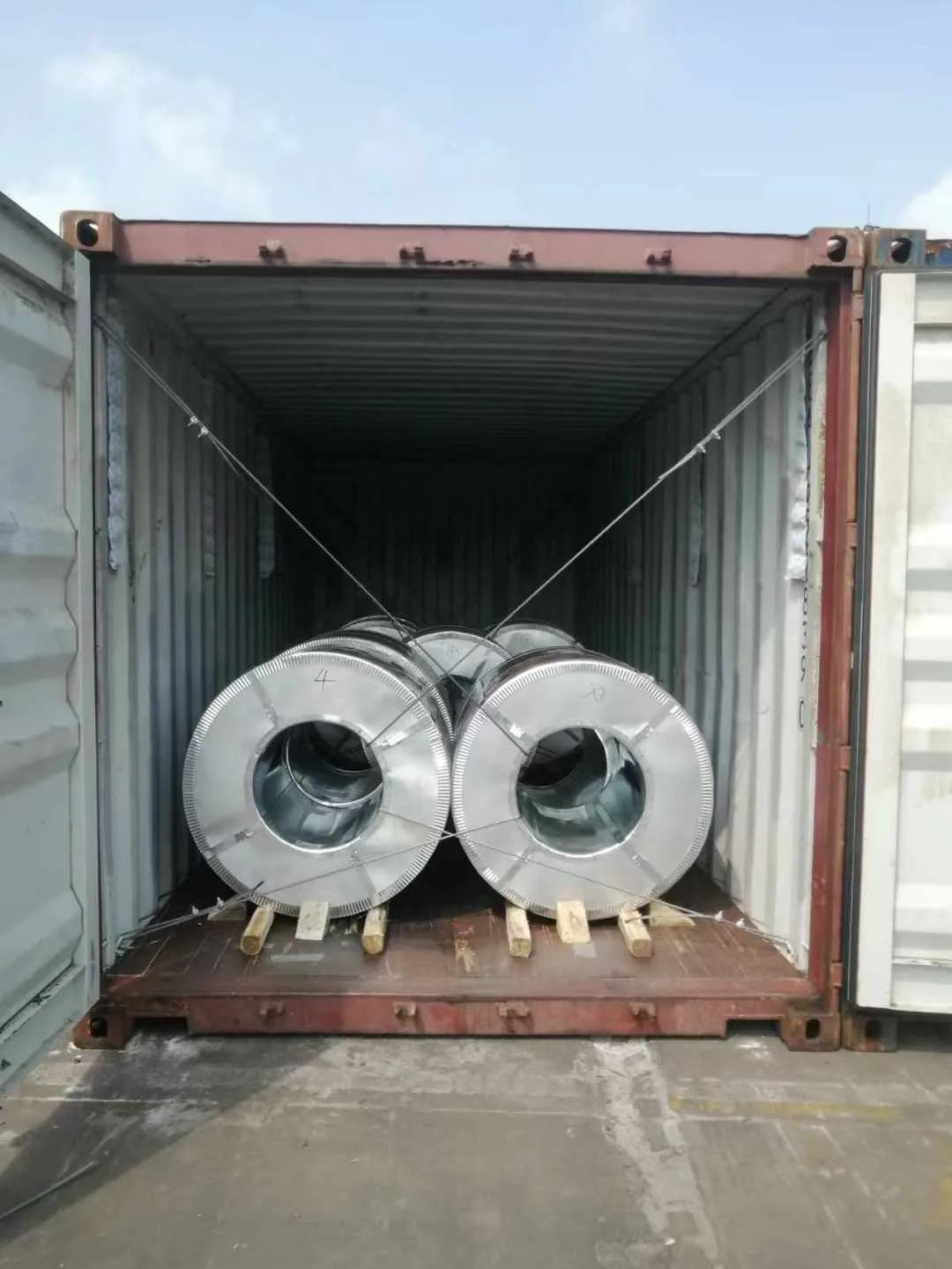

Container Shipment
Suitable for regular export orders. Coils packed on pallets and loaded into containers for safe sea transport. FOB/CIF/CFR available.

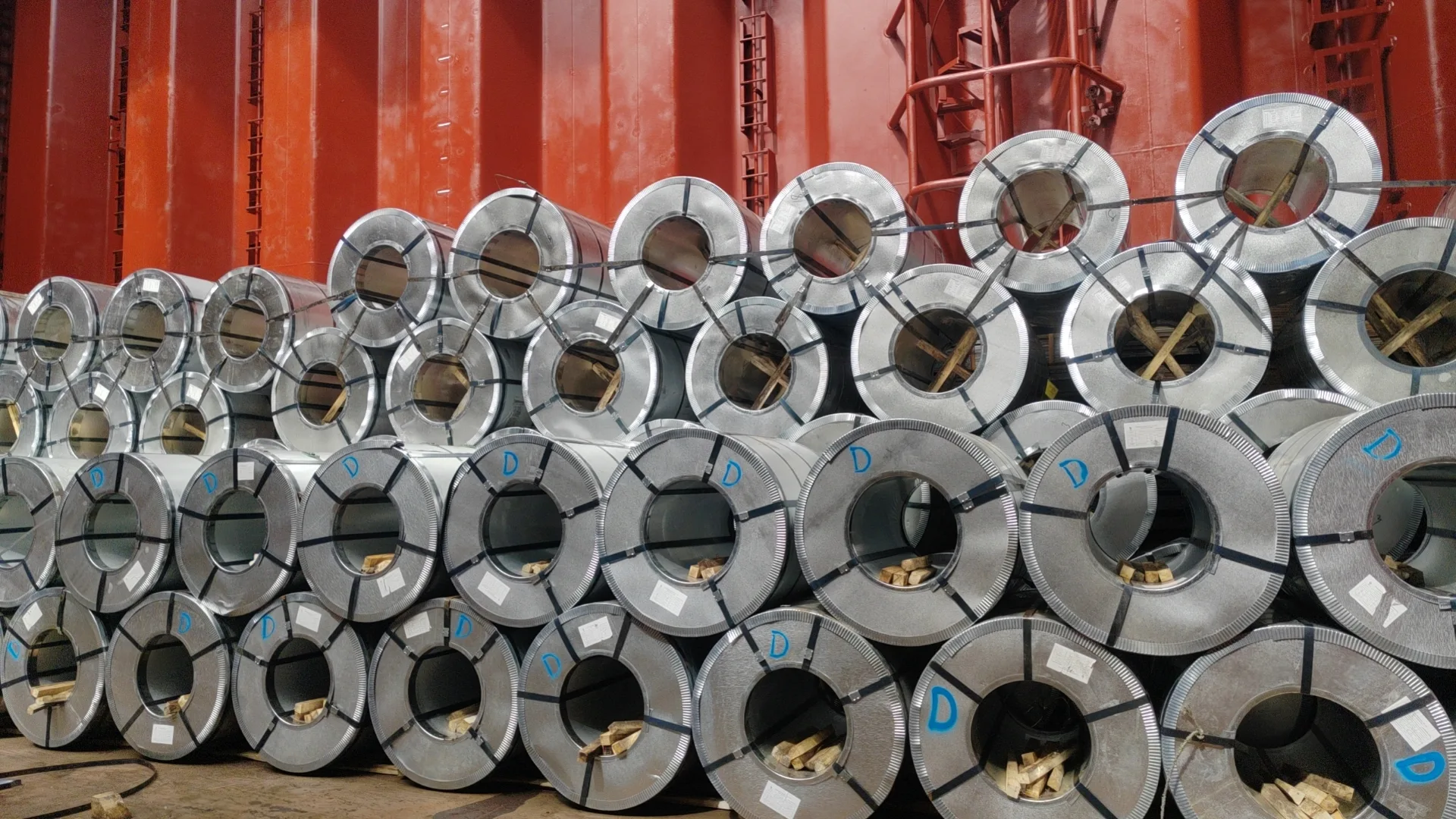

Break Bulk Vessel Shipment
For large volume orders or oversized coils. Professional lifting, lashing and port handling for bulk steel procurement.
Small to medium orders: container shipment is preferred. Large-scale or project orders: break bulk vessel may be more efficient.
Frequently Asked Questions
What is PPGI?
PPGI (Prepainted Galvanized Iron) is galvanized steel coated with primer and paint on a continuous coil coating line (CCL). It provides color, aesthetics, and additional corrosion protection beyond the base zinc coating.
What paint systems are available?
PE (Polyester, 15-20μm, economy), SMP (Silicon Modified Polyester, 20-25μm, enhanced UV), HDP (High Durability Polyester, 20-25μm, premium), PVDF (Polyvinylidene Fluoride, 25μm, ultra-premium 20+ year exterior).
How to choose RAL color?
Provide RAL number (e.g. RAL 9003 Signal White), Pantone code, or physical sample. We color-match to ΔE ≤ 1.5 (visually identical). Popular: RAL 9002, 9003, 9006, 3009, 5015, 6005.
What is the difference between PPGI and PPGL?
PPGI uses GI (zinc) substrate; PPGL uses GL (Al-Zn) substrate. PPGL costs 5-10% more but lasts 30-50% longer. PPGL is preferred for premium exterior; PPGI is economical for interior and light-duty.
What is the MOQ?
25 MT per color/specification for full containers. Mixed containers: 5 MT/color minimum with 25 MT total.
Can wrinkle/textured finish be produced?

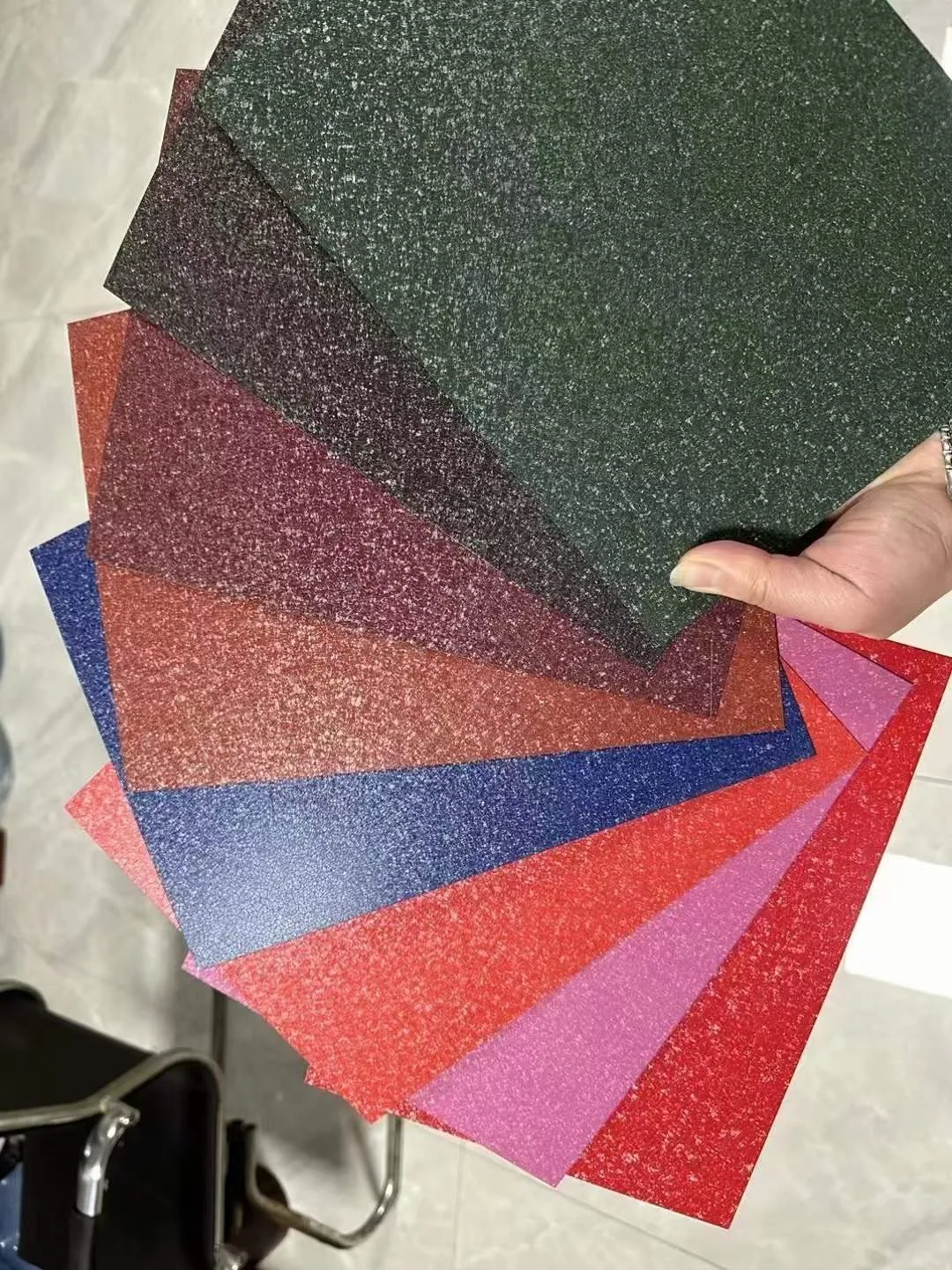

Yes. Wrinkle PE, embossed SMP and textured finishes are available for decorative applications. These finishes hide minor scratches and fingerprints.
Looking for Quality PPGI Color Coated Steel?
Contact us for PPGI pricing, RAL color matching, paint system recommendations, export packing and shipping. Factory direct worldwide.
